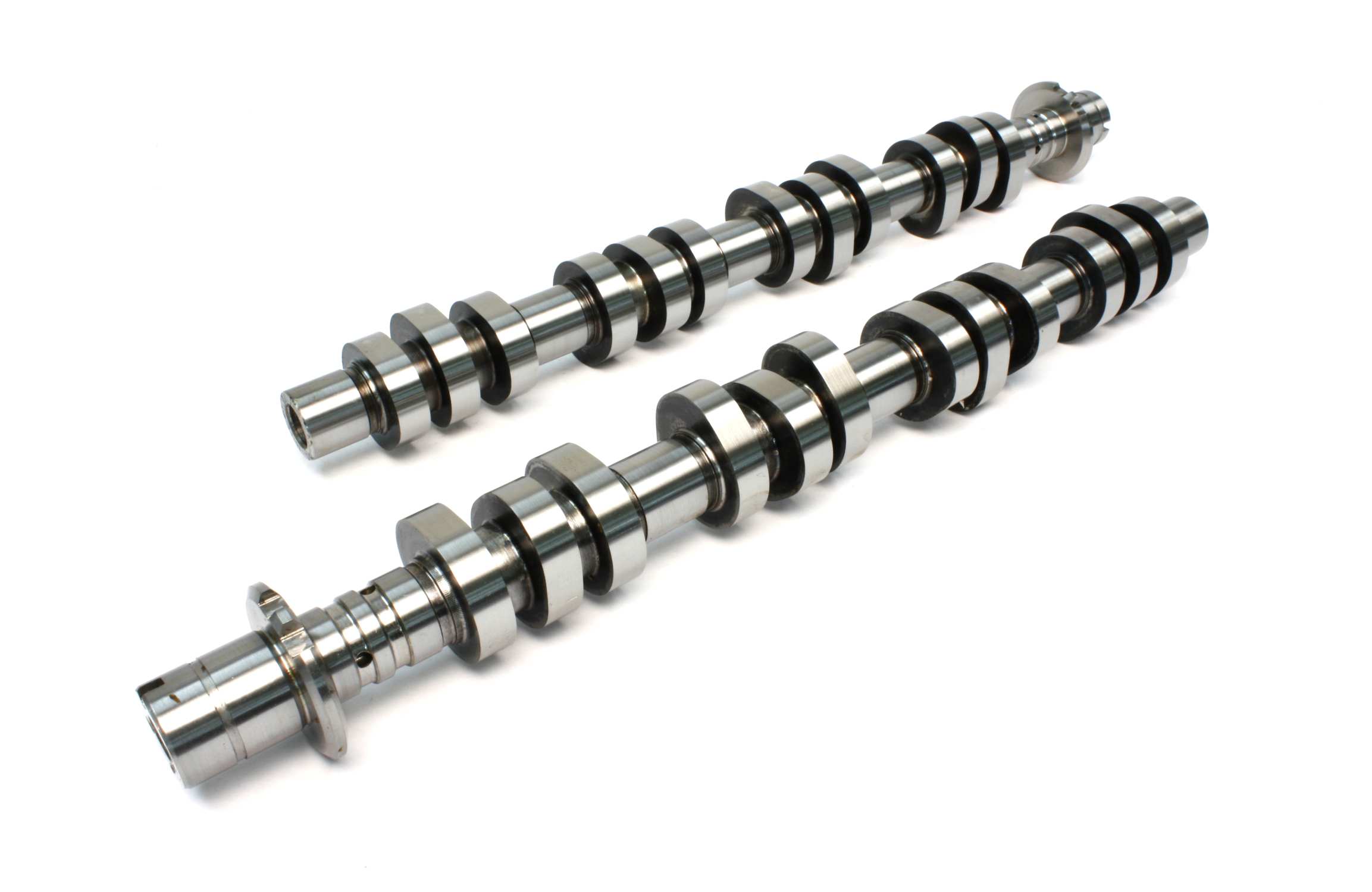

Nockenwelle
CompCams : 127300
Artikel-Nr.: COM127300
Serious Street Cam, Noticeable Idle. Solid Power Gains Above 4600 Rpm, Requires Spring Upgrade. Works With Tuners, Recommend Custom Tuning. Best With 3.90 Gears And 3000 Stall.- Advertised Exhaust Duration: 268 DD
- Advertised Intake Duration: 261 DD
- Amazon ASIN: B001O09PU6
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 950-6,400 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller Swinging Follower
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: XFI VSR (Valve Springs Required)
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
- Exhaust Duration at .050 inch Lift: 270 DD
- Exhaust Valve Lift: 0.48 IN
- Grind Number: XE261H-15.5
- Intake Duration at .050 Inch Lift: 253 DD
- Intake Valve Lift: 0.491 IN
- Lifter Type: Hydraulic Roller Swinging Follower
- Lifters Included: No
- Lobe Separation: 115.5 DD
- Title: XFI VSR 222/235 Hydraulic Roller Cams for Ford 4.6/5.4L Modular 3 Valve
- Usage: Street/Performance
- Valve Springs Required: Yes
- Make: Ford
- Block type: Modular
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 950 RPM From
- Operating RPM to: 6400 RPM To
- Duration intake @.050": 222 Duration intake @.050"
- Lift intake: 491 Lift intake
- Lift exhaust: 480 Lift exhaust
