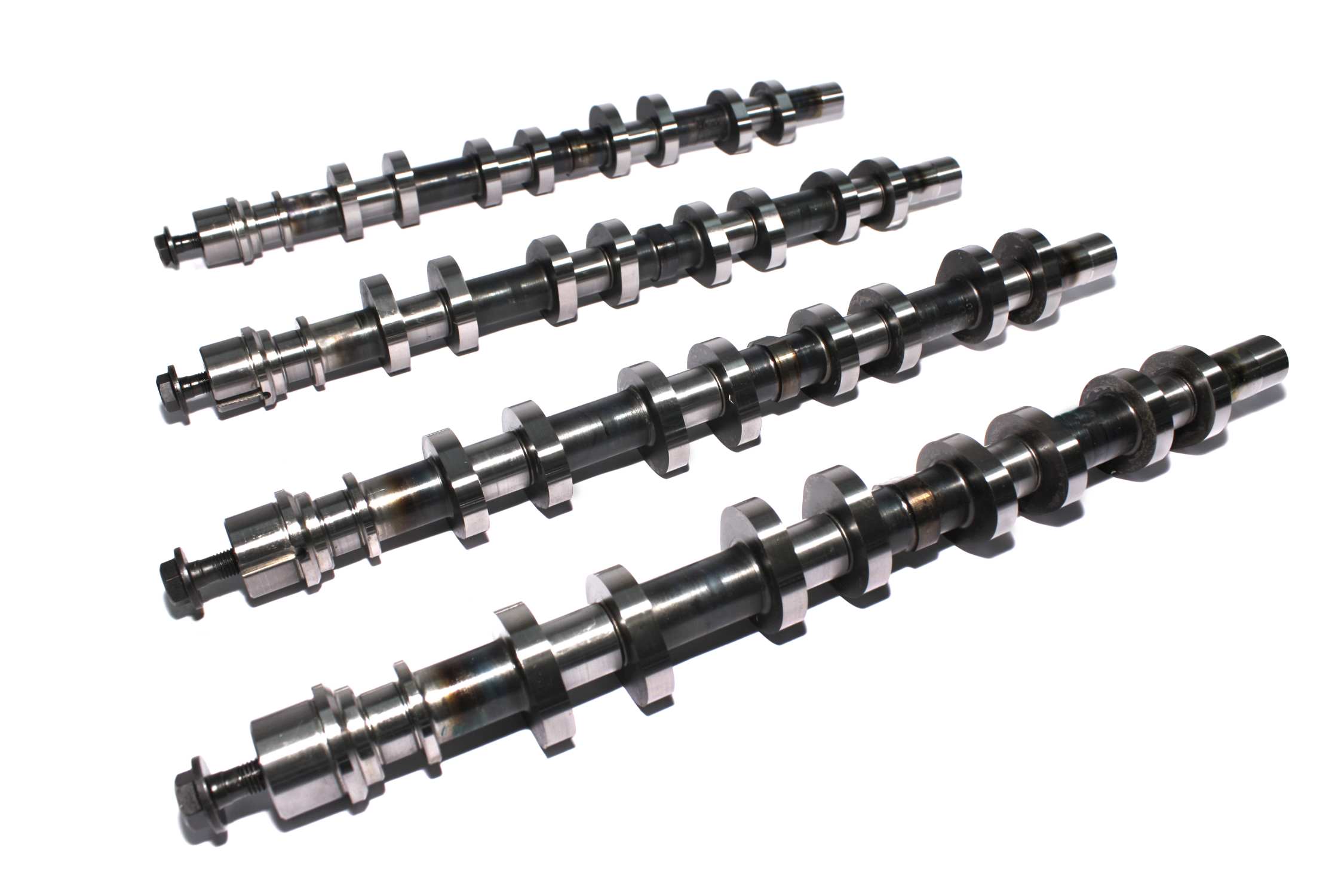

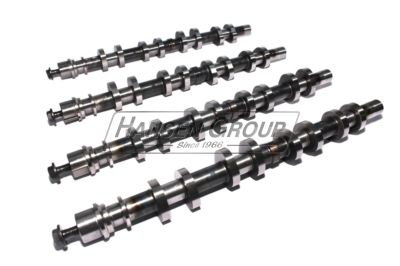

Nockenwelle
CompCams : 106400
Artikel-Nr.: COM106400
Hot Performance Cams With Serious Horsepower And Torque Gains. Recommended Lower Gears, Requires Custom Tuning, Larger Throttle Body, Mass Air, Injectors And Exhaust Upgrades. Automatics Use A 2200+ Stall. Features A Rough Idle.- Advertised Exhaust Duration: 267 DD
- Advertised Intake Duration: 269 DD
- Amazon ASIN: B001G752NQ
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,800-6,200 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller Swinging Follower
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Xtreme XE-R
- Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
- Exhaust Duration at .050 inch Lift: 232 DD
- Exhaust Valve Lift: 0.45 IN
- Grind Number: XE270BH-114
- Intake Duration at .050 Inch Lift: 234 DD
- Intake Valve Lift: 0.475 IN
- Lifter Type: Hydraulic Roller Swinging Follower
- Lifters Included: No
- Lobe Separation: 114 DD
- Title: Xtreme XE-R 234/232 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve
- Usage: Street/Performance
- Valve Springs Required: Yes
- Make: Ford
- Block type: Modular
- Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 1800 RPM From
- Operating RPM to: 6200 RPM To
- Duration intake @.050": 234 Duration intake @.050"
- Lift intake: 475 Lift intake
- Lift exhaust: 450 Lift exhaust
