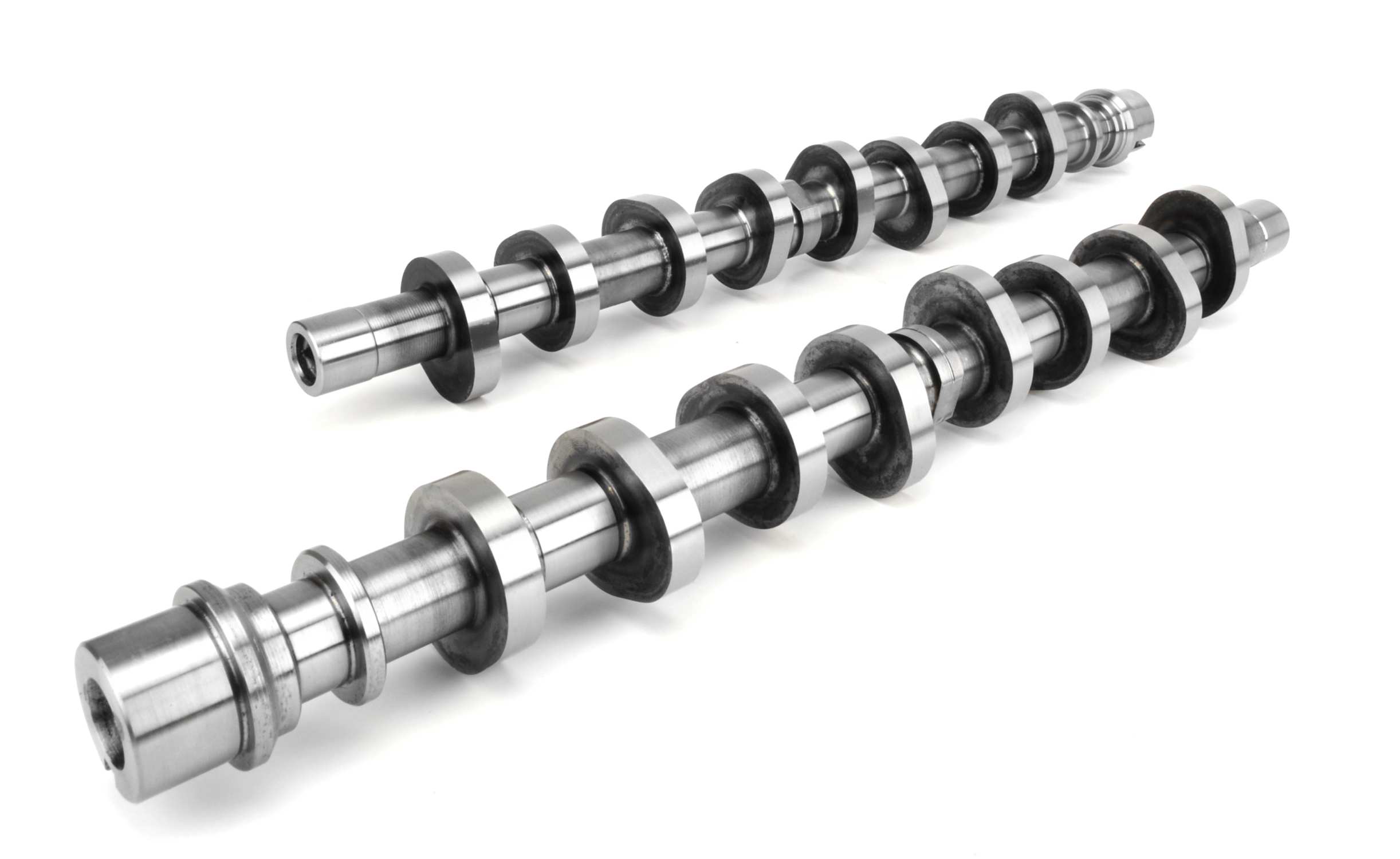

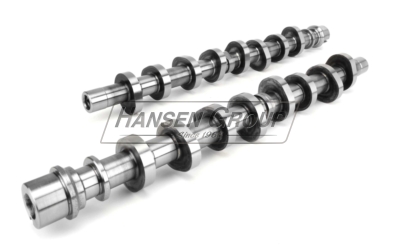

Nockenwelle
CompCams : 102200
Artikel-Nr.: COM102200
Mild Street Performance, 3.23-3.55 Gears. Good Torque And Power. Noticeable Idle. Requires Custom Tuning.- Advertised Exhaust Duration: 274 DD
- Advertised Intake Duration: 268 DD
- Amazon ASIN: B000V9GBXA
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,600-5,600 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller Finger Follower
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Xtreme Energy
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)
- Exhaust Duration at .050 inch Lift: 236 DD
- Exhaust Valve Lift: 0.5 IN
- Grind Number: XE268H
- Intake Duration at .050 Inch Lift: 230 DD
- Intake Valve Lift: 0.5 IN
- Lifter Type: Hydraulic Roller Finger Follower
- Lifters Included: No
- Lobe Separation: 114 DD
- Title: Xtreme Energy 230/236 Cams for Ford 4.6/5.4L Modular 2 Valve
- Valve Springs Required: Yes
- Make: Ford
- Block type: Modular
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 1600 RPM From
- Operating RPM to: 5600 RPM To
- Duration intake @.050": 230 Duration intake @.050"
- Lift intake: 500 Lift intake
- Lift exhaust: 500 Lift exhaust
