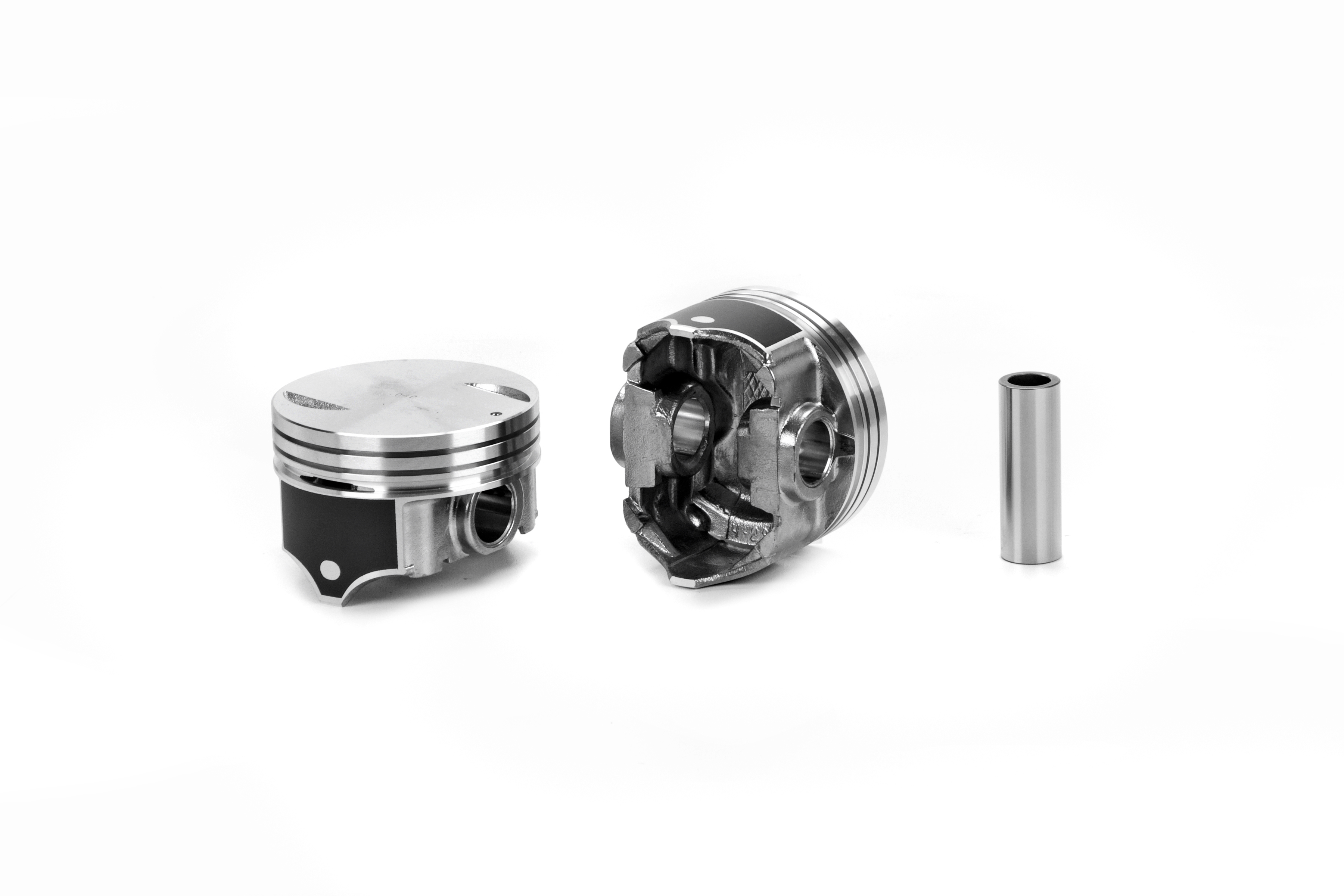

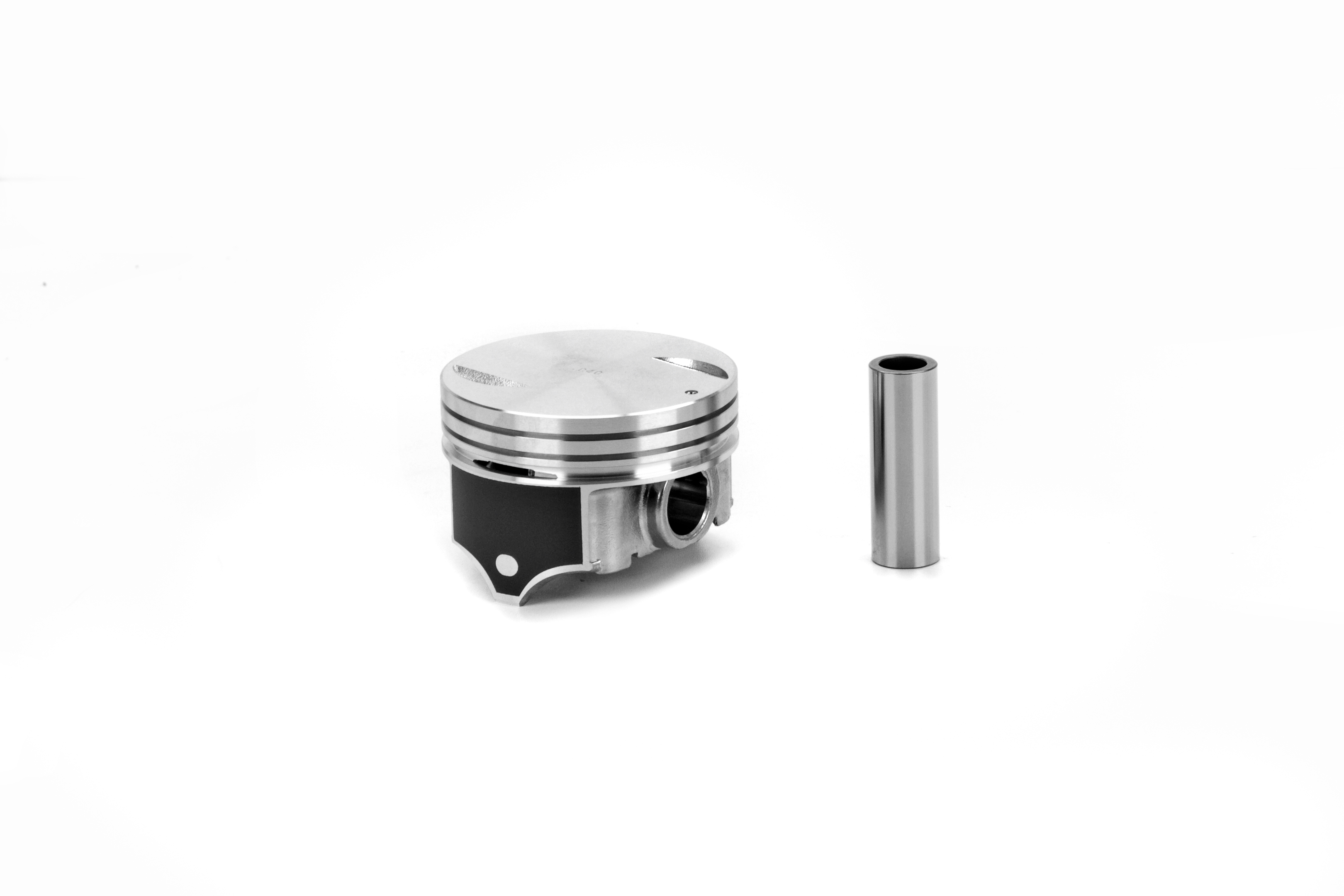

Kolben
Silv-O-Lite : 3440HC.STD
Artikel-Nr.: SIV3440HC.STD
- Base Number: 3440HC
- Bore Diameter: 4.25 IN
- Compression Height: 1.627 IN
- Compression Ratio: 9.1
- Crown Type: FLAT TOP
- Eng. Disp Liters: 7.4
- Eng. Disp. In.: 454
- Engine Family: Chevy Big Block Gen VI
- Engine Manufacturer: Chevrolet
- OE Assembly: 12555794
- Oil Ring Thickness: 0.1875 IN
- Oversize: STD
- Oversized: No
- Oversizes: STD .020 .030 .040 .060
- Pin Configuration: Offset
- Pin Number: 0990x230A
- Pin Type: Press
- Piston Head Type: Flat
- Piston Material: Cast 390 Hypereutectic Alloy
- Piston Pin Outside Diameter: .990 IN
- Ring Pack: 5/64, 5/64, 3/16 Shallow Oil Groove
- Second Compression Ring Thickness: 0.0781 IN
- Sold As: Sold as a set, priced per piece
- Top Compression Ring Thickness: 0.0781 IN
- Top Land: .265
- VIN Code: B, J
- Year From: 1996
- Year Range: 1996-2000
- Year To: 2000
- 12555794: Chevrolet
- 12555794: General Motors
- 224-3464: MAHLE
- 57971255: General Motors
- 963: Moresa
- H749CP: Sealed Power
- P3098: Enginetech
- Engine Family: Chevy Big Block Gen VI
- Oversize: STD
- Eng. Disp. In.: 454
