Kolben
Sealed Power : BSEH749CP
Artikel-Nr.: SEAH749CP

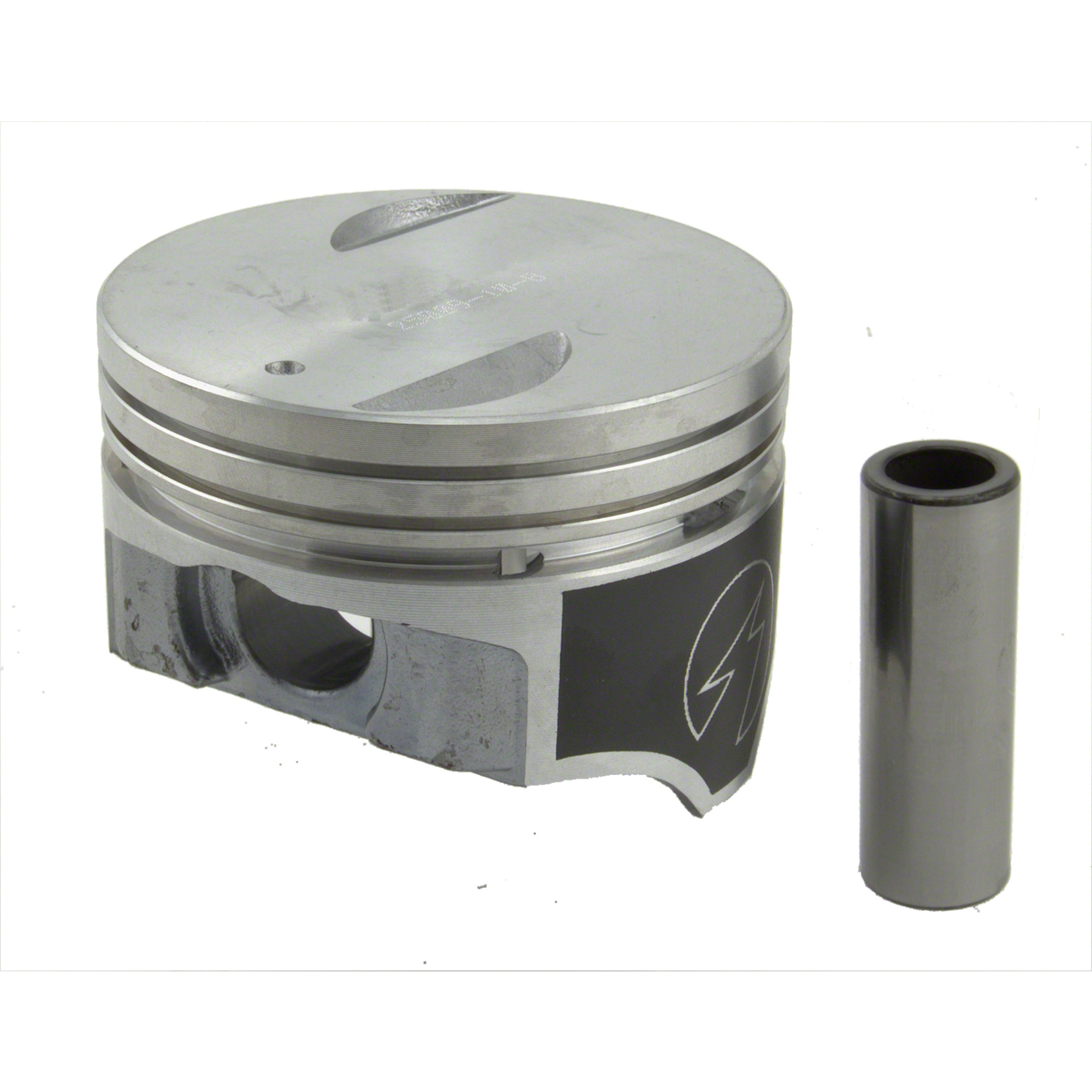

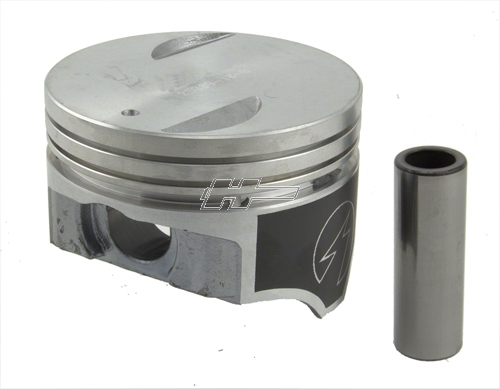

Sealed Power H749CP Engine Piston Set
- Assembly Lubricant Included: No
- Bore Diameter: 107.95 MM
- Compression Height: 1.625 IN

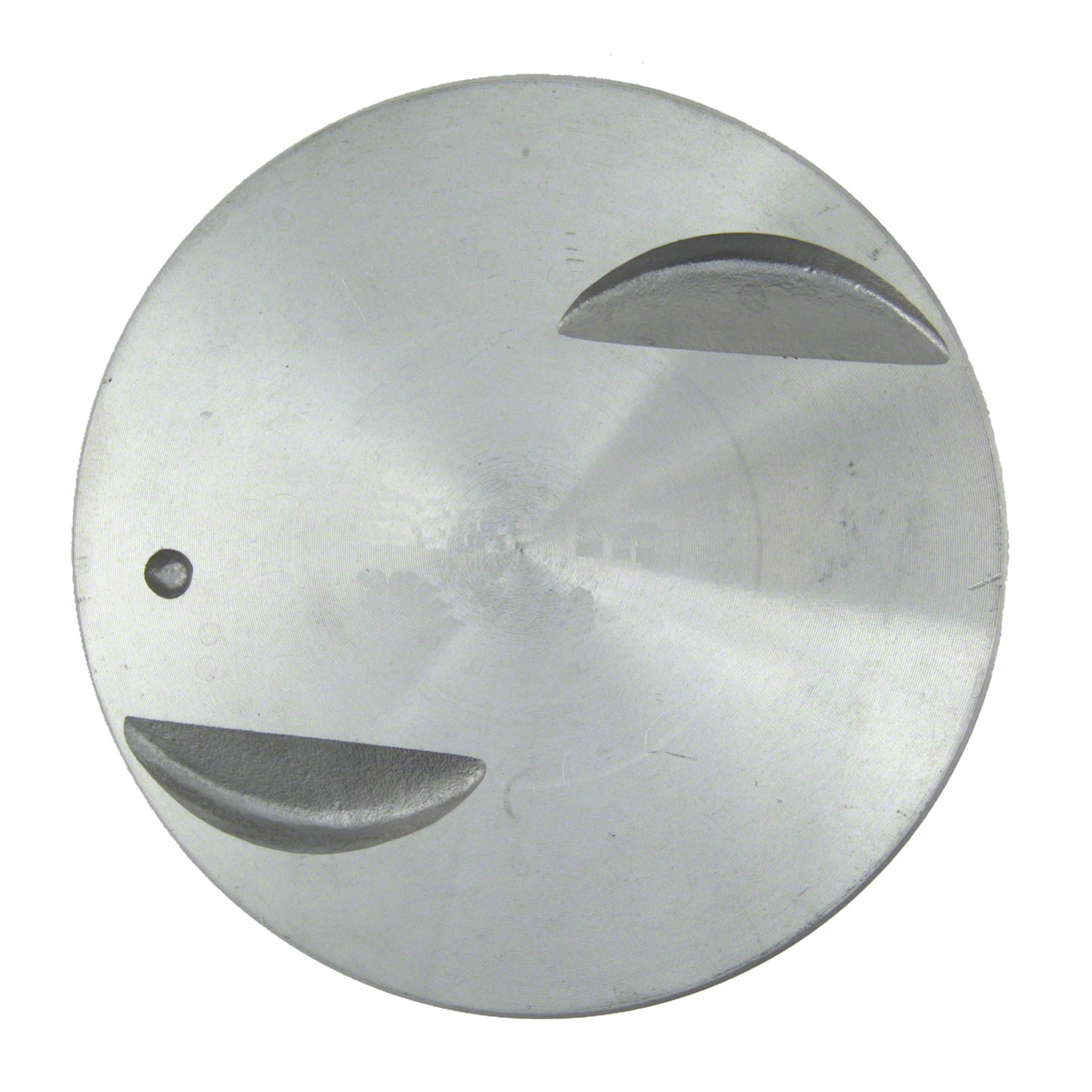

- Head Illustration: 5
- Head Type: Flat Head w/2 valve reliefs; Use w/E553K ring set; DUROSHIELD~ skirt coated piston
- Minimum Clearance: See Piston Fitting Information on carton label
- Oil Ring Thickness: 0.1875 IN
- Oversized: No
- Part Description: Engine Piston
- Pin Offset (Inch): 0.04
- Pin Offset (MM): 1.016
- Pin Type: P
- Piston Material: Hypereutectic
- Piston Pin Outside Diameter: 25.128 MM
- Second Compression Ring Thickness: 0.0781 IN
- Top Compression Ring Thickness: 0.0781 IN
- Weight W Pin Gram: 00792.+/- 00.
- 10171065: General Motors
- 12555794: General Motors
- 1400P: Ertel
- H3440: Silvolite
- H749CP:
- P489CH: Badger
- P489H: Badger
- ZHC8224N: Zollner
- ZHC8224N STD:
- ZHC8224NSTD: Zollner
