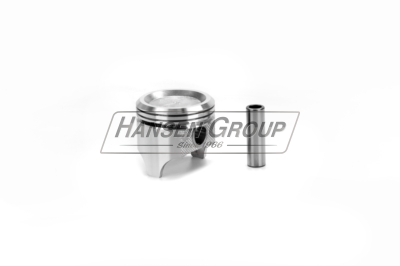

Kolben
Silv-O-Lite : S3454.030
Artikel-Nr.: SIVS3454.030
- Base Number: 3454
- Bore (in): 3.875
- Bore (MM): 98.4
- Bore Diameter: 3.875 IN
- Compression Height: 1.66 IN
- Compression Ratio: 7.6
- Crown Type: DISH
- Cylinder Bore Diameter: 3.875 IN
- Eng. Disp Liters: 4.1
- Eng. Disp. In.: 250
- Engine Family: GM Inline 6-Cylinder
- Engine Manufacturer: Chevrolet
- OE Assembly: 3877610
- Oil Ring Thickness: 0.1875 IN
- Oversized: Yes
- Oversized Amount: .030
- Oversizes: STD .020 .030 .040 .060
- Pin Configuration: Offset
- Pin Number: 0927x300A
- Pin Type: Press
- Piston Head Type: Dish
- Piston Material: Cast 332 Alloy
- Piston Pin Outside Diameter: .927 IN
- Ring Pack: 5/64, 5/64, 3/16
- Second Compression Ring Thickness: 0.0781 IN
- Sold As: SINGLE
- Top Compression Ring Thickness: 0.0781 IN
- Top Land: .265
- Year From: 1966
- Year Range: 1966-1990
- Year To: 1990
- 3877610: Chevrolet
- LC291NP: Sealed Power
- Engine Family: GM Inline 6-Cylinder
- Oversize Inch: 0,3
- Eng. Disp. In.: 250
