Antriebswelle

Name: Antriebswelle
Brand: Cardone
SKU: cdo603108
Price: 196.650000 SEK
Availability: InStock

Cardone : 603108

Artikel-Nr.: CDO603108

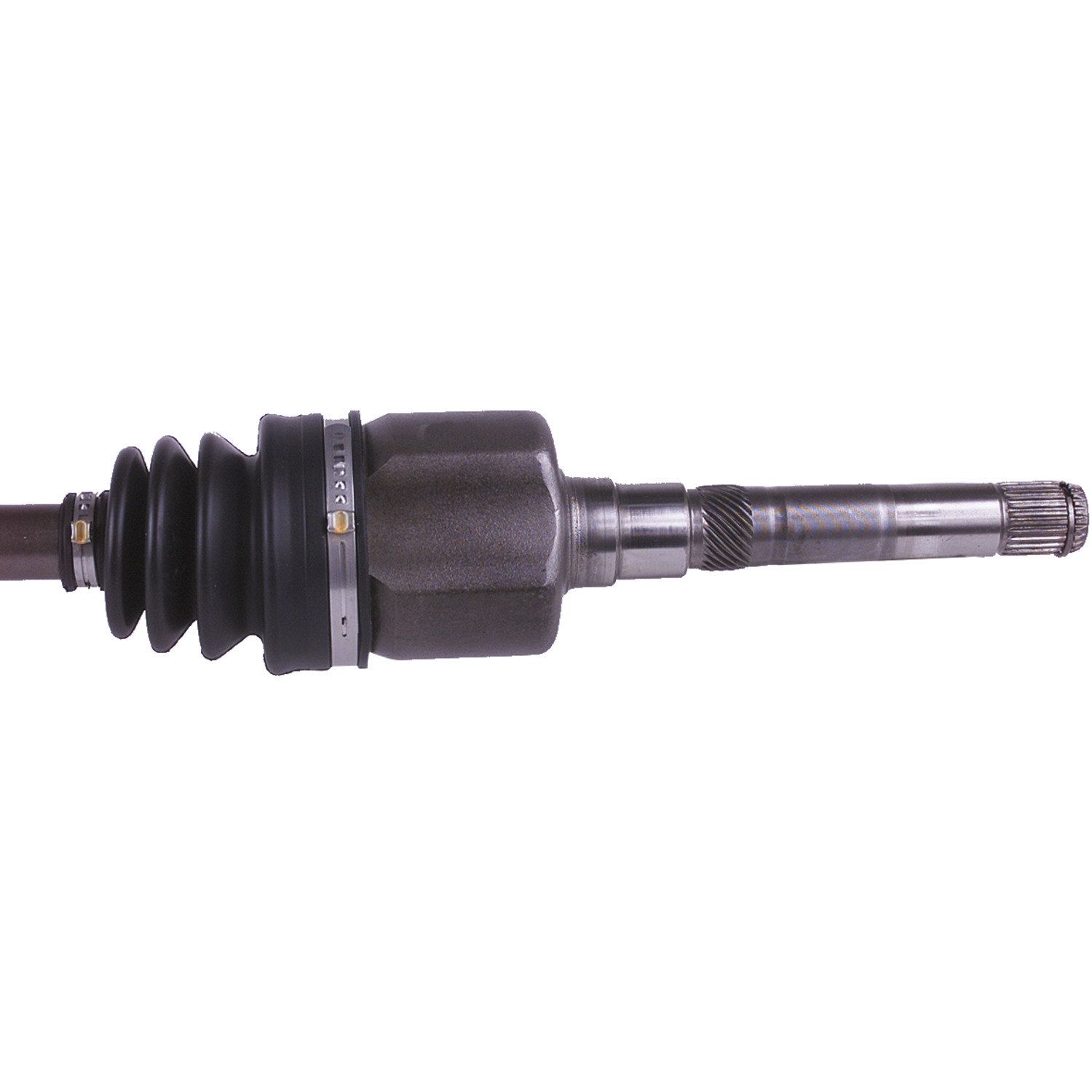

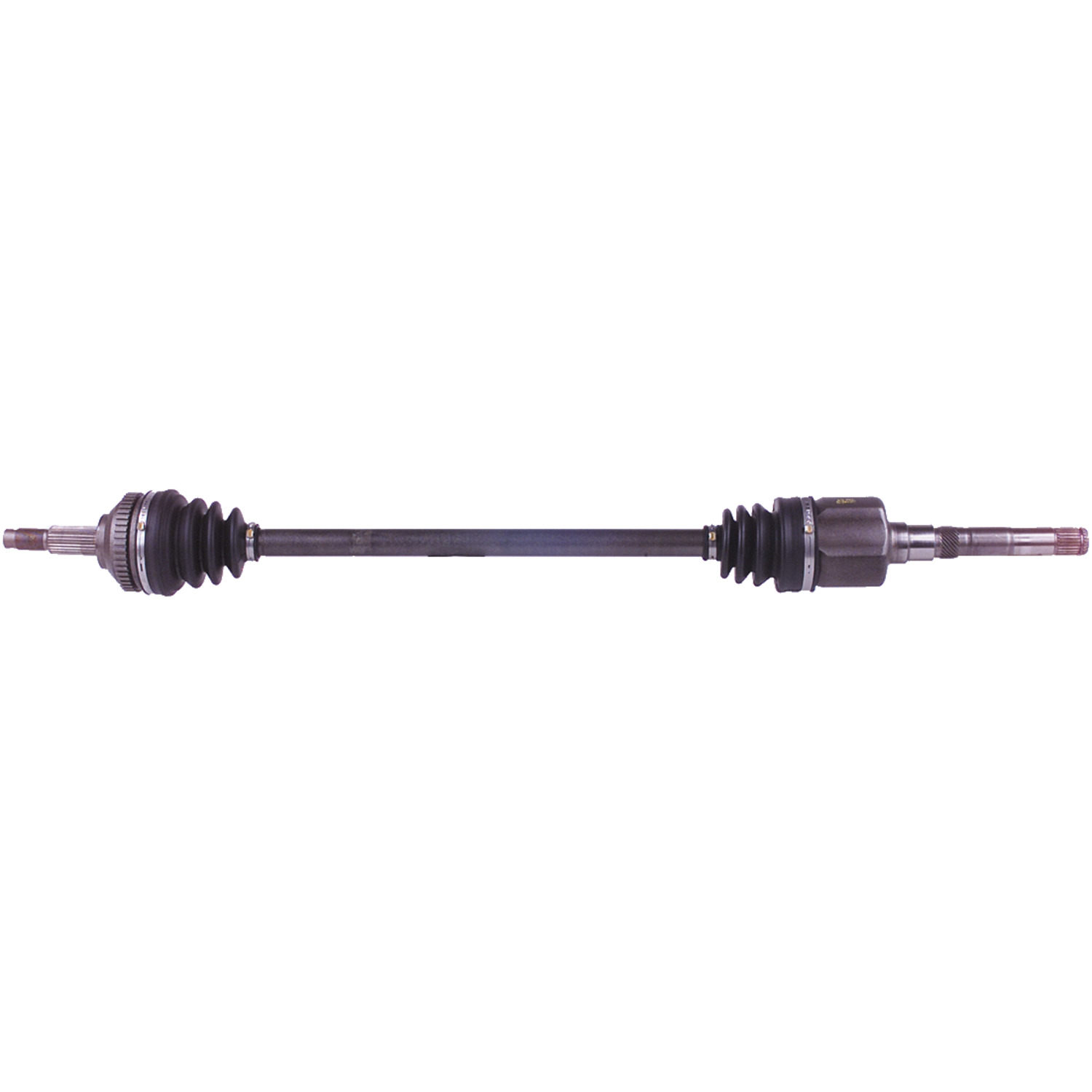

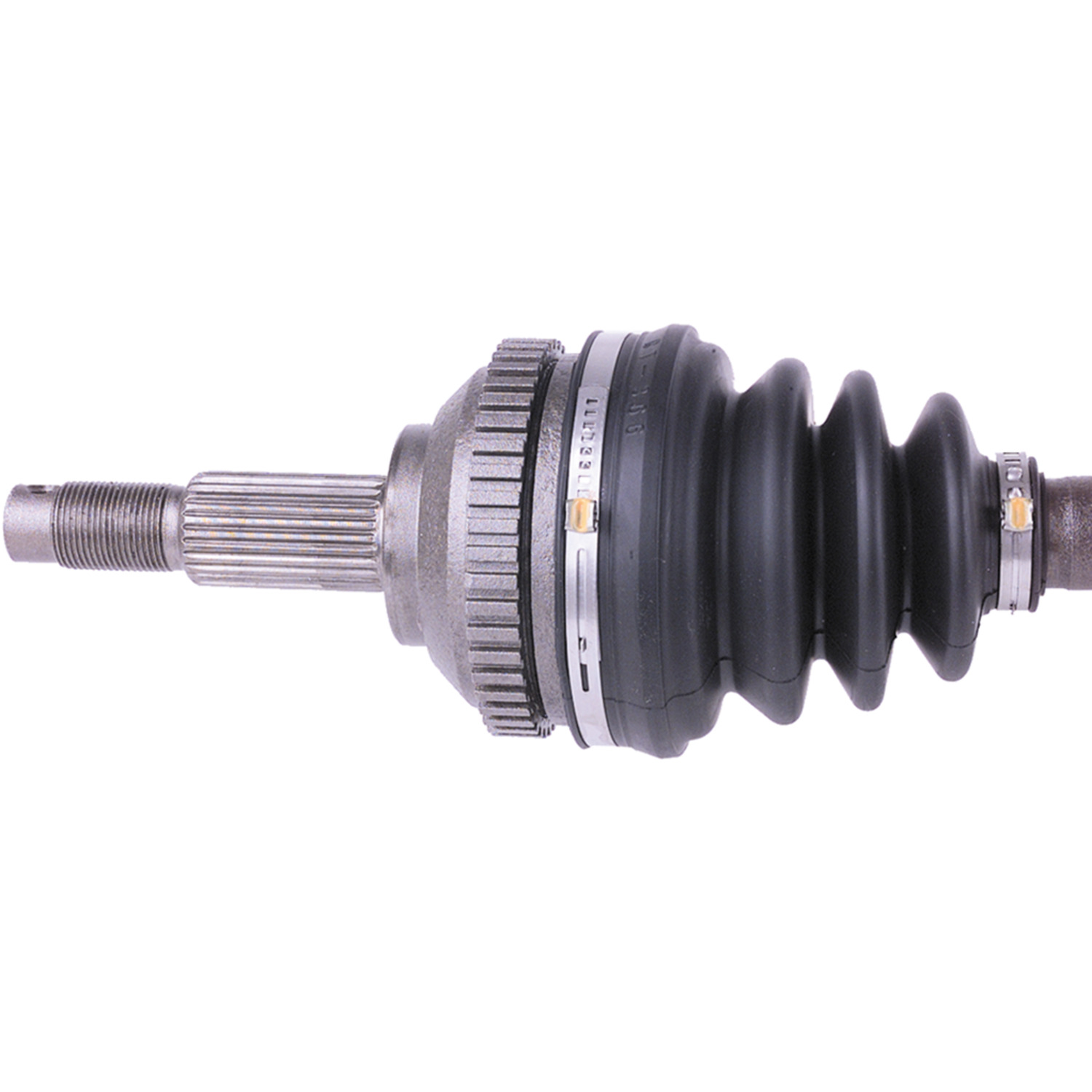

Remanufactured Cv Axle Assembly

Beschreibung

CARDONE has extensive experience in remanufacturing CV Drive Axles - we've spent over three decades re-engineering materials and processes to arrive at a superior, longer-lasting product. Our proprietary pneumatic clamping machines create a perfect seal b

Produktinformationen des Lieferanten

11176: Toothed
ABS Tone Ring Included: Yes
ABS Tone Ring Tooth Quantity: 47
Axle Nut Included: No
Axle Nut Type: Hex
Boot Color: Black
Boot Material: Neoprene
Boot Rib Quantity: 3
Compressed Length: 1028.7 MM
Compressed Length: 40.5 IN
Contains Electronic Components: No
CV Joints Included: Yes
Does it require SDS: No
Dynamic Damper Attached: No
E-Waste: No
FAA_A1: Shafts are inspected 100% for run out to prevent vibrations. Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly.
FAA_A10: When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking.
FAA_A11: Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint.
FAA_A12: The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem.
FAA_A2: When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on.
FAA_A3: The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced.
FAA_A4: The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up.
FAA_A5: The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAA_A6: The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time.
FAA_A7: NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one.
FAA_A8: Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly.
FAA_A9: Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications.
FAQ_Q1: Are the CV Drive Axle shafts balanced at the factory?
FAQ_Q10: When I replace the CV drive axles, should I reuse the old seals?
FAQ_Q11: Can I let the CV Drive Axles hang while I am working on the car?
FAQ_Q12: The wheels wobble when I make a turn. What's the problem?
FAQ_Q2: I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why?
FAQ_Q3: When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise?
FAQ_Q4: When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong?
FAQ_Q5: I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this?
FAQ_Q6: I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do?
FAQ_Q7: The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it?
FAQ_Q8: The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it?
FAQ_Q9: Is it OK to use an impact hammer to install the retaining nut?
Grade Type: Standard
Inboard Joint Type: Spline
Inboard Spline Quantity: 25
Is Item A Chemical: No
Is Or Contains A Battery: No
Is Or Contains A Bulb: No
Is Prop Sixty Five Affected: No
Is the item CARB affected: No
Mount Type: Spline
Outboard Joint Type: Spline
Outboard Spline Quantity: 26
Package Contents: Complete Axle; Instruction sheet
Product Condition: Remanufactured
Shaft Diameter: 1.06 IN
Shaft Diameter: 26.92 MM
Shaft Material: Steel
Slip Yoke: No
Universal Joints Included: No
